Low Voltage Transformer

THREE PHASE Isolation Transformer50KVA

  • PRIV : 3*400VAC
  • SEC V : 3*400VAC
  • Power : 50KVA

SKU: IT050-000-00-00


Download Technical Specifications
Availability: 2 in stock
0 EGP

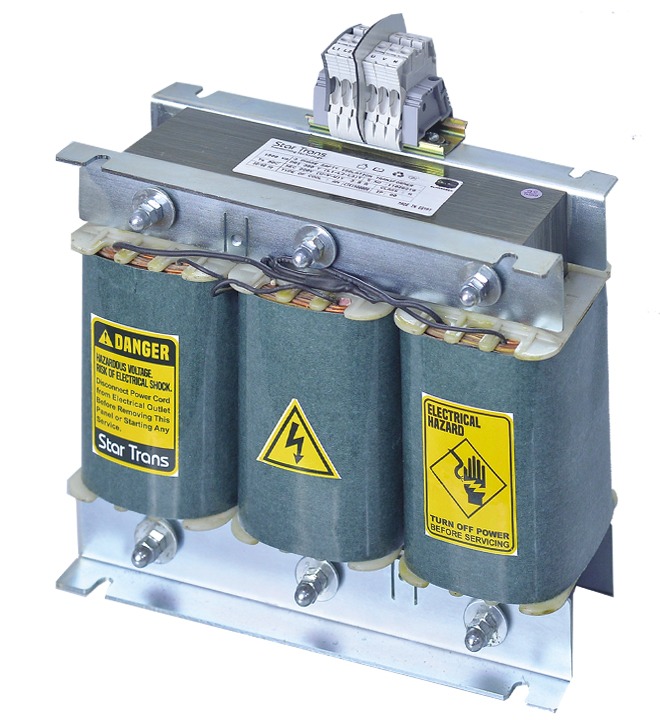

THREE PHASE Isolation Transformer50KVA

Isolating Transformer for the safe electrical isolation of the input and output sides The transformer may be used to set up protective measure in accordance with VDE 0100

Rated input voltage 3*400VAC
Rated output voltage 3*400VAC
Rated power 50KVA
Insulation class H
MAX Ambient temperture 50C
Efficiency >96%
Degree of protection IP00 OR IP23 According to request
Efficiency 50/60HZ
K-Factor K-13
Vector Group DYn11
Windings copper 100%
Dim without Enclosure 600*277*580
Weight Without Enclosure 305kg
Dim with Enclosure (mm) 895*876.535
