Low Voltage Transformers

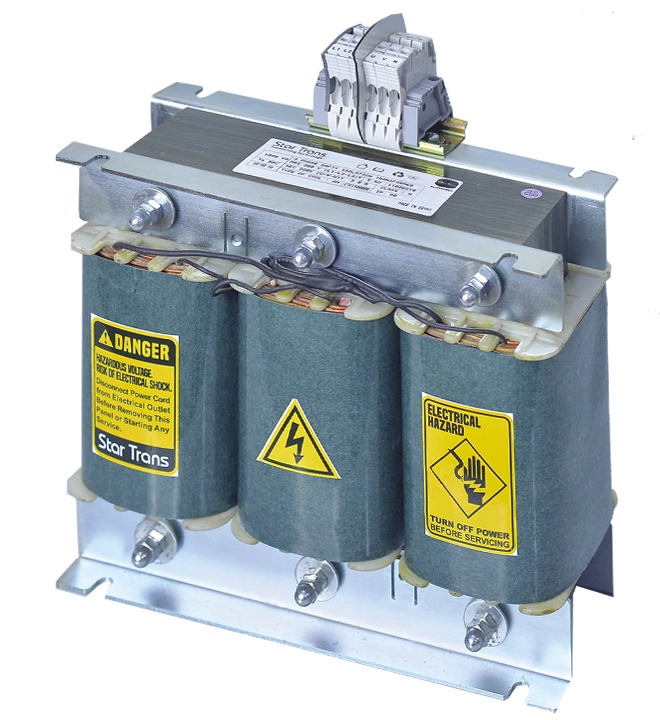

Three Phase Isolation Transformer IP00-1KVA
- PRIV : 400V
- SEC V : 400V
- Power : 1KVA
SKU: IT001-000-00-00
Download Technical Specifications
Three Phase Isolation Transformer IP00-1KVA
Safty ISOLATION TRANSFORMER For electrical isolation of the input & output sides
| Rated input voltage | 3*400VAC |
|---|---|
| Rated output voltage | 3*400VAC |
| Rated Power | 1KVA |
| Insulation Class | H |
| MAX Ambient temperature | 50C |
| Efficiency | >96% |
| Degree of protection | IP00 |
| Frequency | 50/60HZ |
| K-Factor | K13 |
| Windings | Copper 100% |
| Connection | DYn11 - other connection avaliable |
| Dim | 240*95*220 |
| Weight | 16KG |
