Low Voltage Transformers

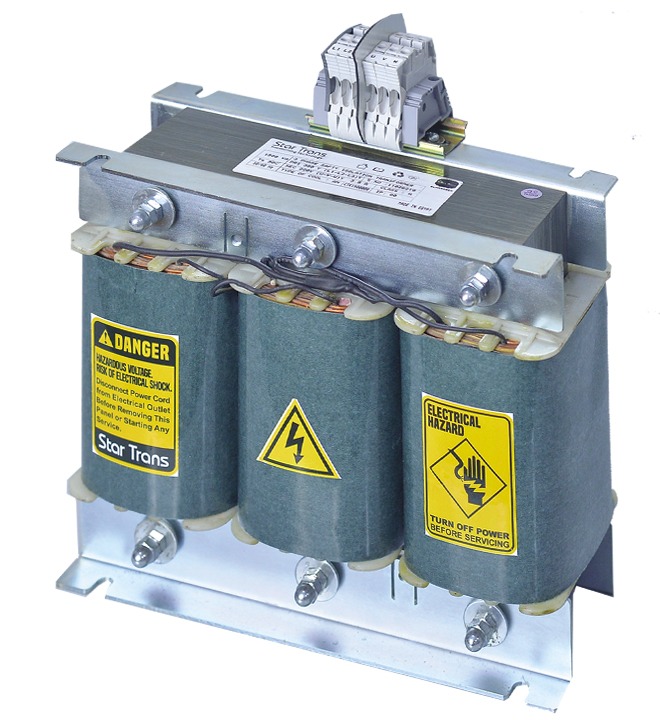

Three Phase Isolation Transformer IP00-3.5KVA
- PRIV : 400V
- SEC V : 400V
- Power : 3.5KVA
SKU: IT003-500-00-00
Download Technical Specifications
Three Phase Isolation Transformer IP00-3.5KVA
3PH Safty isolation transformer for electrical isolation between primary and secondary side
| Rated input voltage | 3*400VAC |
|---|---|
| Rated output voltage | 3*400VAC |
| Rated Power | 3.5KVA |
| Insulation Class | H |
| MAX Ambient temperature | 50C |
| Efficiency | >96% |
| Degree of protection | IP00 |
| Frequency | 50/60HZ |
| K-Factor | K13 |
| Windings | Copper 100% |
| Connection | DYn11 - other connection avaliable |
| Dim | 300*139*305 |
| Weight | 33KG |
