Automatic Voltage Regulator
Three-Phase Stabilizer Servo Linear 200 KVA
- PRIV : 304-456 V
- SEC V : 380V
- Power : 200KVA
SKU: TPL1 200KVA
Download Technical Specifications

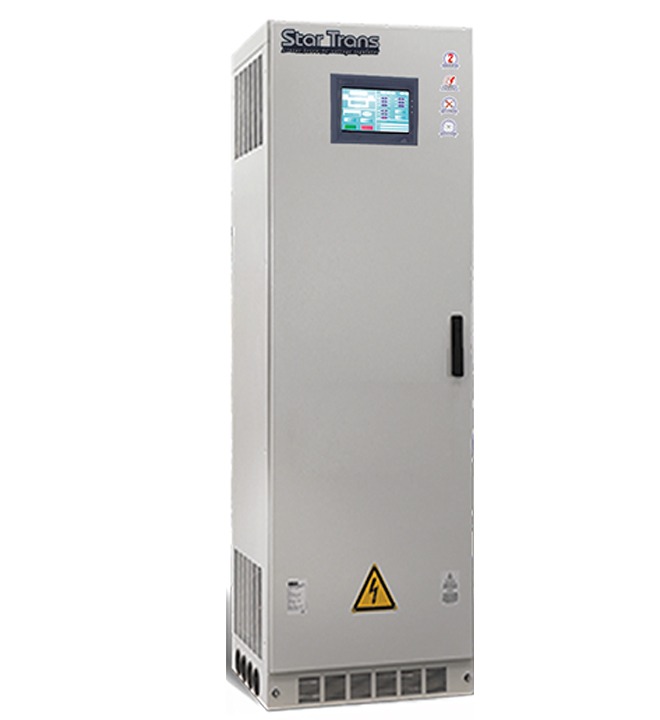

Three-Phase Stabilizer Servo Linear 200 KVA
It has protection from: over voltage-under voltage-over load-over heat-phase sequence-phase failure
| Rated input voltage | 304-456 V |
|---|---|
| Rated output voltage | 380 V |
| Rated power | 200KVA |
| Insulation class | H |
| Insulation Resistance | >= 2M Ohm |
| Efficiency | >98% |
| Range volt | 20% |
| operational temperture | -20 C to +45 C |
| protection class | ip 23 ( indoor) ,outdoor type on request |
| method of voltage regulation | Regulation transformer with servo motor |
| Frequency | 50/60HZ |
| voltage regulation mode | independent phase regulation for three phase |
| protection | over voltage protection -under voltage protection -overload protection -overheat protection -short circuit protection -phase squence protection -phase failure protection - by protecting the bass |
| digital display | man machine interface enable users to know the unit condition clearly |
