Three Phase Transformer
Three Phase Isolation Transformer IP00-8KVA
- PRIV : 400VAC
- SEC V : 400VAC
- Power : 8KVA
SKU: IT008-000-00-00
Download Technical Specifications

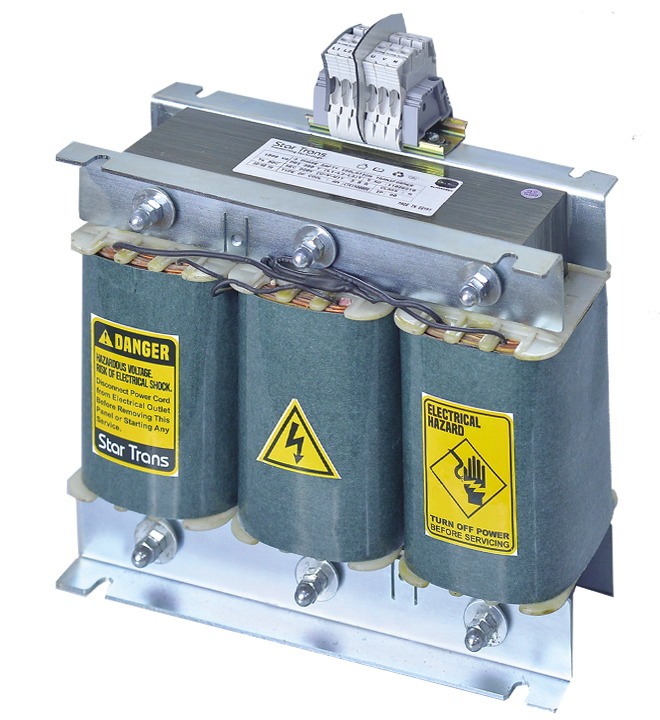

Three Phase Isolation Transformer IP00-8KVA
Isolating Transformer for the safe electrical isolation of the input and output sides The transformer may be used to set up protective measure in accordance with vde 0100
| Rated Input Voltage | 3*400VAC |
|---|---|
| Rated Output Voltage | 3*400VAC |
| Rated Power | 8KVA |
| Insulation Class | H |
| Max Ambient Temperature | 50C |
| Efficiency | >96% |
| Degree of Protection | IP00 |
| Frequency | 50/60HZ |
| K-Factor | K13 |
| Connection | DYn-11 |
| windings | Copper 100% |
| Dim | 360*162*355 |
| Weight | 59KG |
