Three Phase Transformer

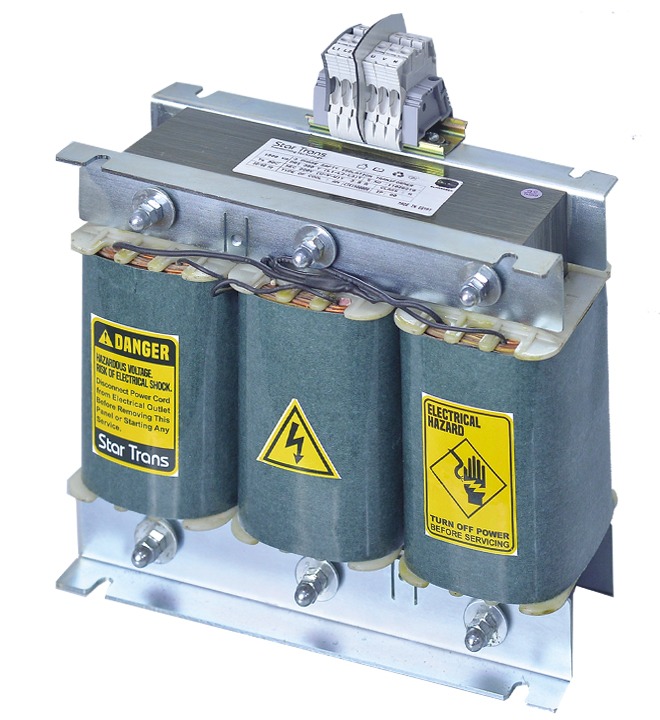

Three Phase Isolation Transformer IP00-10KVA
- PRIV : 400VAC
- SEC V : 400VAC
- Power : 10KVA
SKU: IT010-000-00-00
Download Technical Specifications
Three Phase Isolation Transformer IP00-10KVA
Isolating Transformer for the safe electrical isolation of the input and output sides The transformer may be used to set up protective measure in accordance with VDE 0100
| Rated Input Voltage | 3*400VAC |
|---|---|
| Rated Output Voltage | 3*400VAC |
| Rated power | 10KVA |
| Insulation Class | H |
| MAX Ambient Temprature | 50C |
| Efficiency | >96% |
| Protection Degree | IP00 OR IP23 with Enclosure (According to request ) |
| Frequency | 50/60 HZ |
| K-Factor | K-13 |
| Vector Group | DYN-11 |
| Windings | Copper100% |
| Dim | 360*172*355 |
| Weight | 66KG |
